CLEANCUT MACHINE TOOL CO.

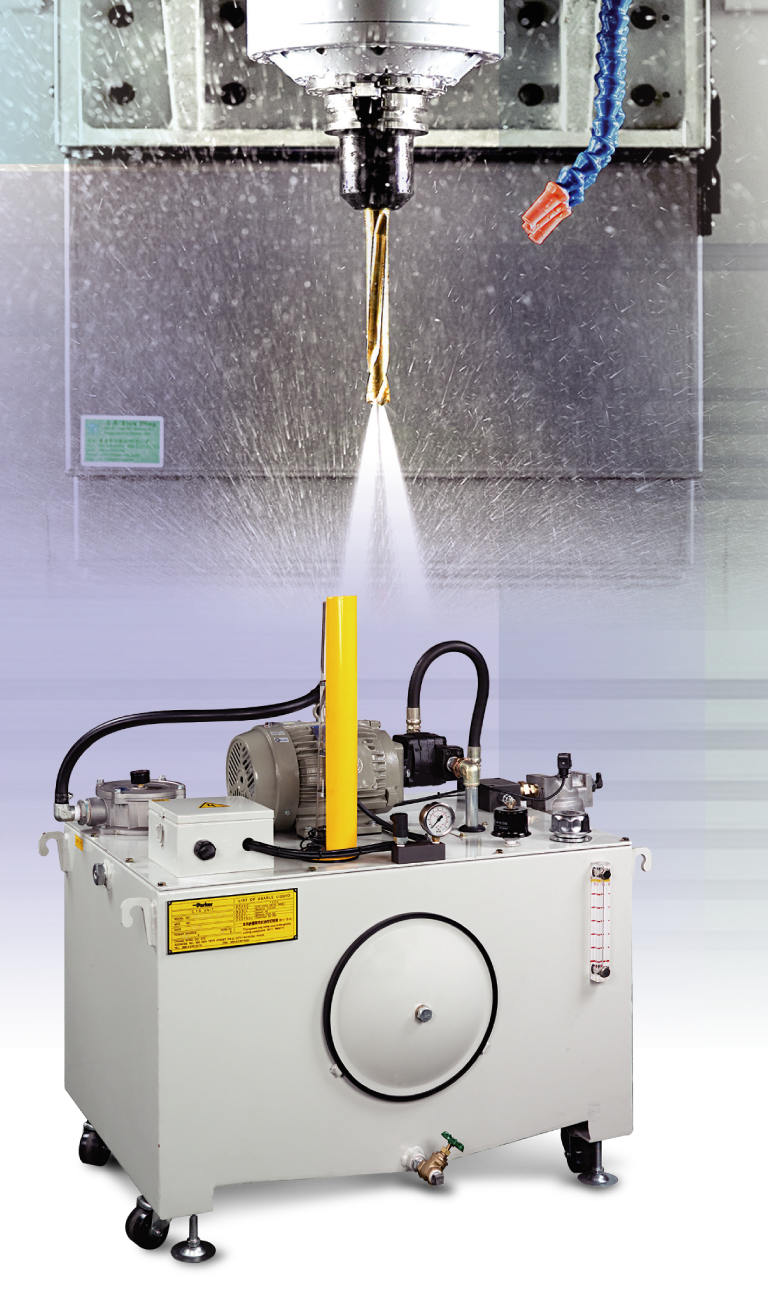

COOLANT-THROUGH-SPINDLE (CTS) 20-70 BAR (Optional)

Coolant-Through-Spindle provides coolant directly to the machining process through the center of the spindle. CTS may extend the life of the cutting tool and improve the evacuation of chips, especially when used for deep hole drilling and pocket milling.

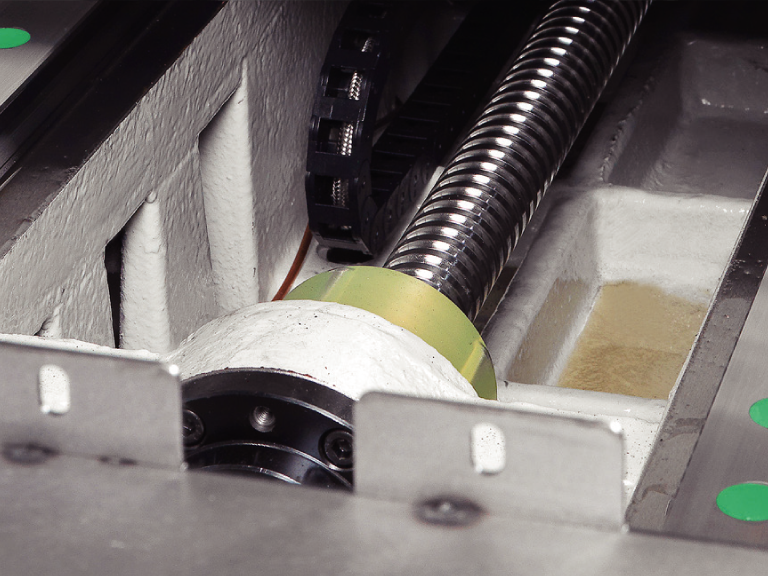

Ø63mm EXTRA LARGE BALLSCREW

Finetech's model 1890 and larger use ø63mm ball screws to handle heavier cutting and table loads while still providing smooth motion.

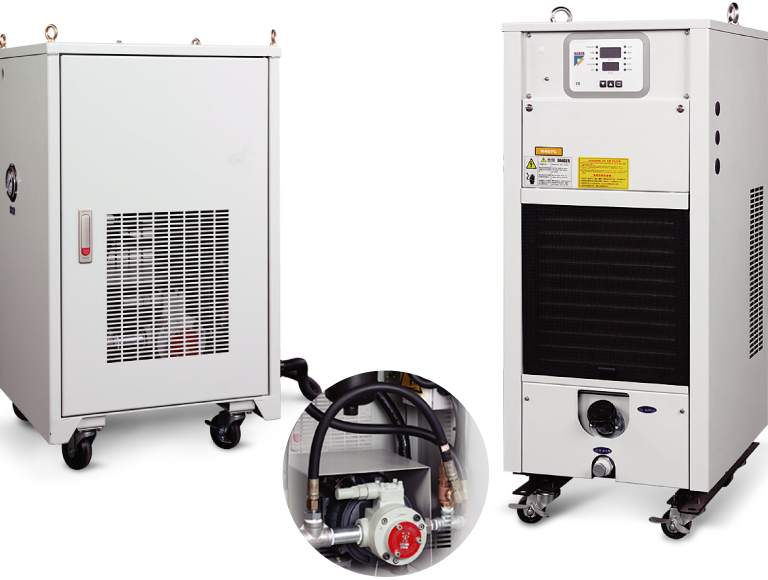

SPINDLE CHILLER ( Oil or Water )

The spindle chiller will help maintain a stable spindle temperature and will reduce the effects of thermal expansion of the spindle main shaft as well as extend the life of the spindle.

IN HOUSE CIRCUIT DESIGN

The Finetech R&D team can design both hardware and software components for the machine tools and allows for better quality control and quick response to customers requests.

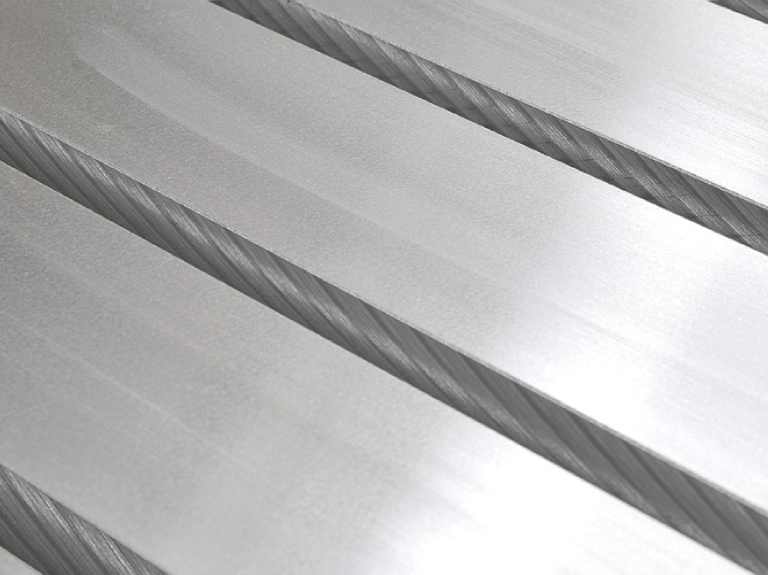

T-SLOT GRINDING

Each T-Slot is ground to a H8 tolerance to provide an accurate datum surface allowing for easy and precise machine setup.

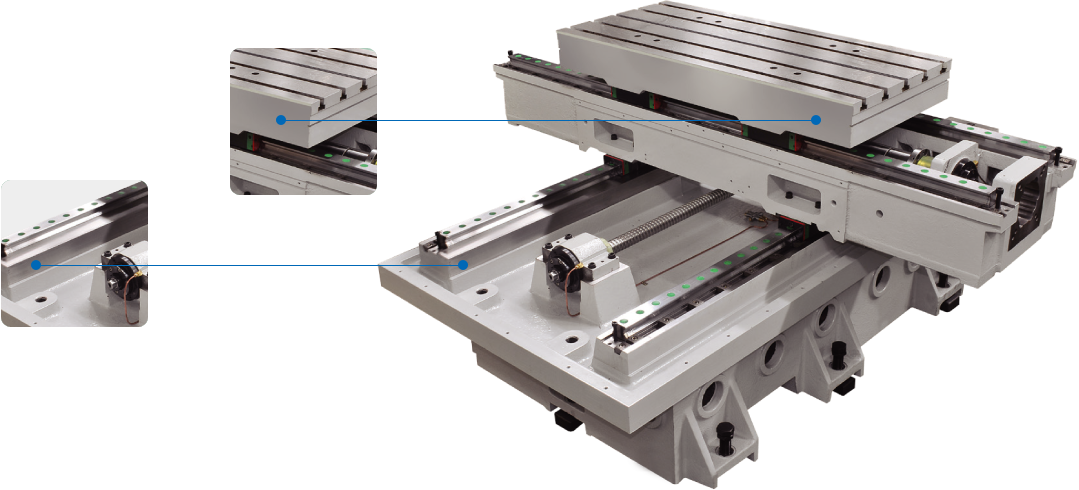

LINEAR SCALE MOUNTING SURFACE

A precision ground surface can be added to each axis to allow for easy installation of linear scales by ensuring a straight and parallel surface.

View PDF

Travel (mm)	X-axis	1200 mm
	Y-axis	700 mm
	Z-axis	650 mm
Distance (mm)	Spindel center to column	705 mm
Distance (mm)	Spindel nose to table	130-780 mm
Table	Table (LXW) (mm)	1350x 700 mm
	Dimesnsion of T-slot (mm)	5 x 18 x 100 mm
	Max. table load (kg)	700 kgs
Spindle	Spindle Taper-40	BT/CAT/DIN (HSK Opt.)
	Spindle motor- cont/ 30min (kw)	7.5-11 kw (11-15 kw Opt.)
	Belt drive spindle (Taper-40)	8000rpm (10000rpm and 12000rpm Opt.)
	Direct driver spindle (Taper-40)	10000rpm, 12000rpm and 15000rpm Opt.
	Build-in spindle (Taper-40/ HSK-E40/50/63)	20000rpm / 30000rpm Opt.
	Belt drive spindle (Taper-50)	6000rpm / 8000rpm Opt.
	Direct driver spindle (Taper-50)	8000rpm / 10000rpm Opt.
ATC	ATC-Swing Arm type	24 / 30 tools Opt.
ATC	ATC-Chain type	32 / 40 tools Opt.
Feed Rate	Rapid feed rate-X/Y/Z	30/30/25 m/min
	Axis feed motor- X/Y/Z	3.0/3.0/3.0 kw
	Cutting feedrate by table	10 m/min
	X ballscrew (dia. x pitch)	40 x 10 mm
	Y ball screw (dia. x pitch)	40 x 10 mm
	Z ball screw (dia. x pitch)	40 x 10 mm
	Linear guide width ( X/Y/Z)	35mmx2 / 35mmx4 / 100mmx2 (Opt. 45mm)
Machine	Power consumption KVA (Transformer)	35 KVA
	Pneumatic Supplier kg/ cm2	5.5-6.5 kg/cm2
	Coolant tank capacity	501 liter
	Floor space requirement	3398 x 2221 cm
	Floor space requirement (with conveyor)	4500 x 2221 cm
	Machine weight	7800 kgs
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without notice.

Standard

Tools kit
LED work light
3-step warning light
Leveling blocks & blots
Fully enclosed splash guard
Rigid Tapping
Standard Spndle 8000rpm (belt type)
Spindle coolant nozzle system
Spindle Air Blast
Central Lubrication system
Auto interrupt& power off system
Portable hand wheel
Opreation manual, Maintenance manual
CNC Manual
Test Report in CD format
Air gun
Coolant gun
Guideway cover (X,Y,Z)
Heat Exchanger for Electrical Cabinet
Safety door
Spindle coolant system
Cutting air blast
Cutting coolant system
Spindle oil chiller
Chip flush coolant system

Optional

Oil skimmer
CTS 20-70BARS
Linar scale
Oil mist coolant system
Oil mist collector
Belt type chip conveyor
Screw type chip conveyor
Workpiece measurement system
Auto Tool touch probe
Auto Tool Laser probe
A/C Cooler for Electrical Cabinet
4th Axis Rotary table
5th Axis Tilting Rotary table
Heavy Duty coolant pump
CE
Paper Filter
Machine Height 150mm More
ZF Gear Box

Mitsubishi M80, M830
Fanuc 0iMF, 31i
Siemens 828D, 840D
Heidenhain TNC620, iTNC640
Fagor

Combination Way
