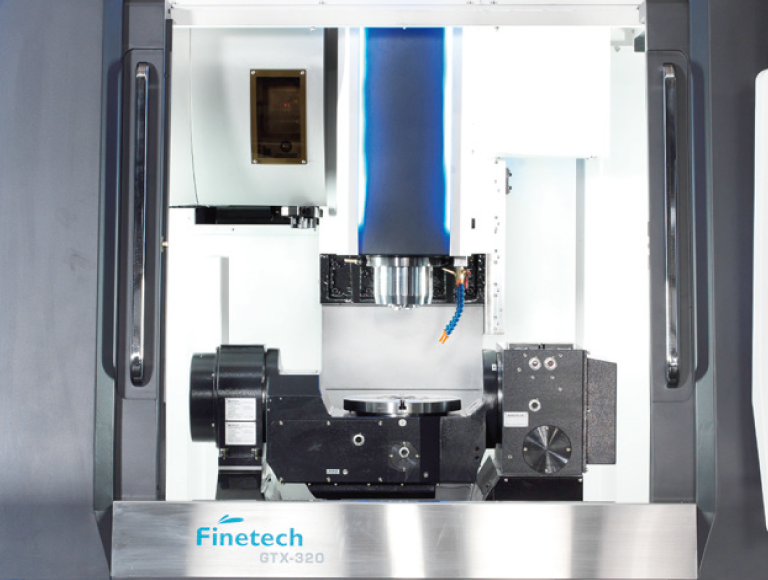

C FRAME 5 AXES MACHINING CENTER

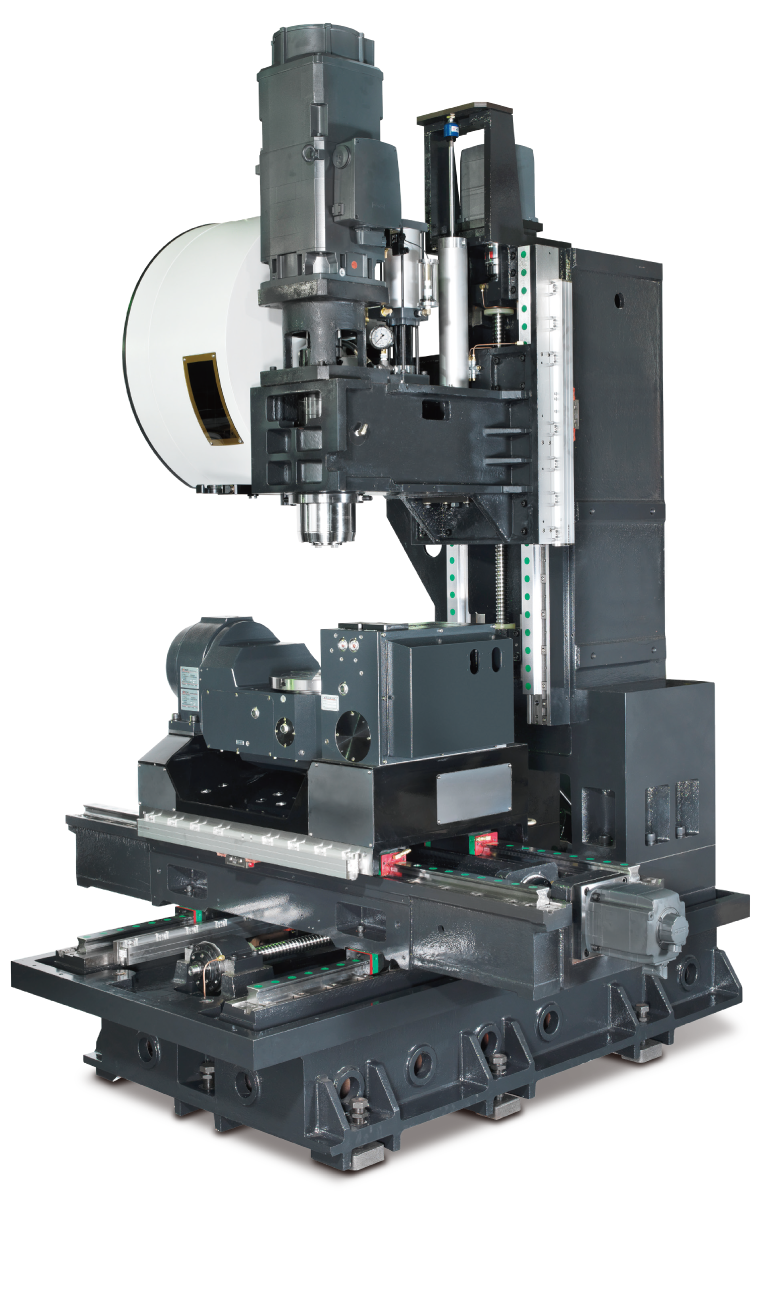

Extremely versatile 5 axes machining center C frame construction.
Air counter balance system on Z-axis, encoders on all axes and roller guideways on X, Y, Z axes
Quick return on investment due to performance a / cost ratio ultra modern ergonomic design as with all Finetech machines built to the highest standards.
Quick return on investment due to performance a / cost ratio ultra modern ergonomic design as with all Finetech machines built to the highest standards.
Standard
- Spindle speed 12000rpm
- Spindle oil chiller
- Spindle bearing purge
- Programmable cutting air blast system
- Coolant gun
- Air gun
- Full enclosed splash guard
- Large table size 650mm
- Interlock front/ side door
- Mechanical oil/coolant separator
- Automatic tool changer
- Spindle taper: #40(DIN, BT, CAT)

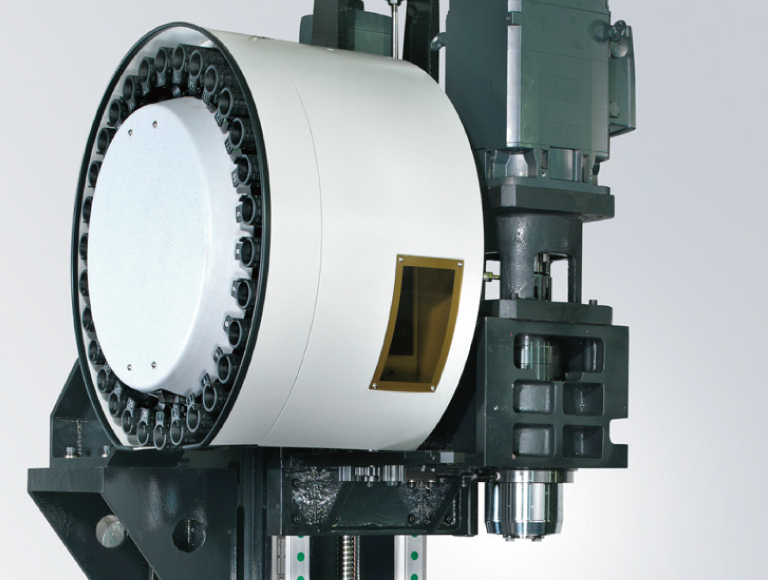

- 32 station tool magazine
- Roller linear guideways
- Z-axis motor with brake system
- LED lamp
- M30 power off
- Heat exchanger for electrical cabinet
- Tailstock for GTX-1520 / 2520
Optional
- Coolant Through Spindle (CTS)
- Programmable cutting coolant nozzle
- Coolant cooling system
- Chain type chip conveyor
- Chip cart
- Chip flushing system
- Laser tool length measurement system TL Micro 200
- Contact type tool length measurement system TT160
- Workpiece measurement kinematic system TT740+KKH100(250)
- Air supply for clamping fixture
- CE conformity specification
- Round metal plate type oil skimmer
- X / Y / Z optical linear scale
- B / C-axis optical encoder
- Air conditioner for electrical cabinet
- Transformer
- HSK 63 20,000rpm spindle (Built-in type)
- 15000rpm direct driven spindle
- Software for crash protection
- Mitsubishi M80, M830
- Fanuc 0iMF, 31i
- Siemens 828D, 840D
- Heidenhain TNC620, iTNC640
- Fagor
